Product Description:
The central transmission suspension concentrator is suitable for mechanical concentration and sludge discharge of radial concentrator in sewage treatment project.The center drive suspension thickener is composed of vertical reducer with motor, rotary bearing, spindle, scraper arm, scraper plate, concentrated grid bar, steady flow tube, control cabinet and so on.
The scraper arm rotates around the central axis driven by the driving device, and the mud scraper board on the scraper arm pushes the mud deposited in the bottom of the pool from the outside to the inside to the center of the pool. In the process of operation, due to unexpected reasons such as foreign body jam or excessive mud accumulation, the transmission is over-twisted and over-twisted protection mechanism moves, and the power supply is cut off and the automatic alarm stops.

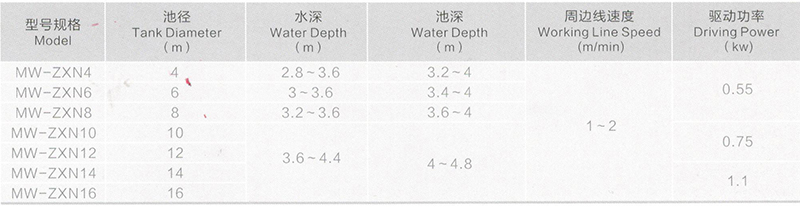

Main technical parameters:
