Product Description:
MW-ZBG periphery driving mud scraper is mainly used for radial-flow settling ponds with large diameters in urban waterworks and sewage treatment factory, also can be used for condensation ponds mud-drainage.
MW-ZBG periphery driving mud scraper is mainly composed of central rotary base, L-type working bridge, scraping arm&board, guide shell, dregs-blocking and drainage facilities, etc. When working, wastewater evenly flows to the periphery of the pond via guide shell from central buttress; the suspend particles in the mixed solution settle at the bottom of pond and form into mud layers by gravity settlement action; the working bridge slowly turns around central base under the driving of periphery transmission structure; the working bridge drives scraping arm to rotate; the scraping board fixed on scraping arm gradually scrapes mud from periphery to central mud collection tunnel, and drain the mud out of pond by water pressure in the pond.

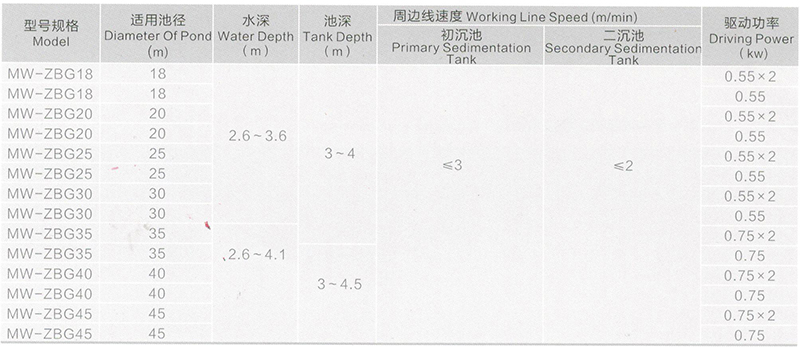

Main technical parameters:
