Product Description:

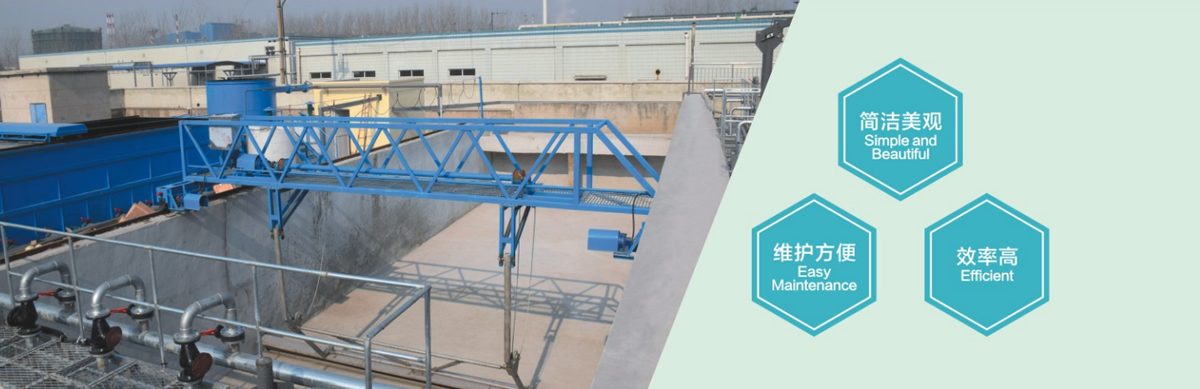

●Traveling type rake lifting sludge scraper is suitable for horizontal flow sedimentation tank in sewage treatment plant. Its main function is to scrape the sludge deposited at the bottom of the tank and collect it to the sludge collection pit, making it convenient for the sludge to backflow or be thickened and dewatered.
● Working bridge adopts truss structure, simple, aesthetic and lightweight, which is convenient in maintenance and low in running cost. Driving reducer is of a variety of choices. If adopting the shaft mounted type, it’s simple and compact in structure and convenient in maintenance; if adopting cycloid pin wheel reducer, it’s attractive in price and quality and the transmission efficiency is high. The walking wheel is made of steel. The system control cabinet adopts outdoor type, safe and reliable, which can be controlled remotely or on the equipment. According to user’s requirement, the electric transmission device can adopt cable rack (standard configuration), sliding contact wire, cable drum and other forms.

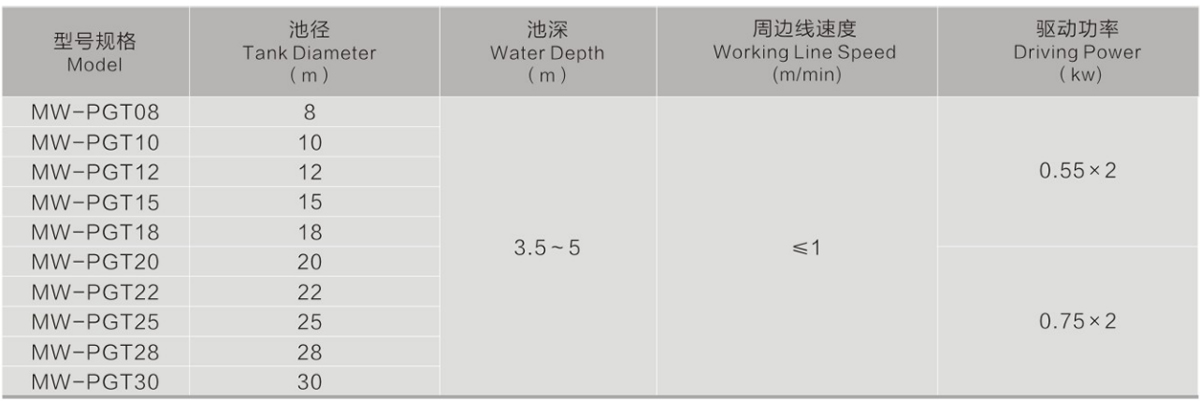

Main technical parameters:
